2023 Vermeer D20x22 S3 HDD

2023 Vermeer D20x22 S3 HDD

Complete Package · Drill · Mixer · Trailer · 500 ft Drill Rod
Complete Package Asking Price
$235,000
Includes everything listed below — ready to work
2023
Year
840 hrs
Hours
19,550 lbs
Thrust / Pullback
2,250 ft-lb
Rotary Torque
74 HP
Deutz Engine
⭐ Bonus — Included With This Package
500 Feet of Drill Rod
Standard drills ship with 400 ft. This machine comes with a custom rod holder built onto the trailer loaded with an extra 100 ft of 2.06" Firestick forged one-piece drill rod — that's a significant added value you won't find on a stock unit.

What's Included

Drill
2023 Vermeer D20x22 S3 · SN# 1VRA170VCP1003404
Hours
840
Mud Mixer
2023 Vermeer MX125 · SN# 1VRX030UEPF009248
Water Tank
500 Gallon
Drill Rod
500 ft of 2.06" Firestick Forged One-Piece Rod

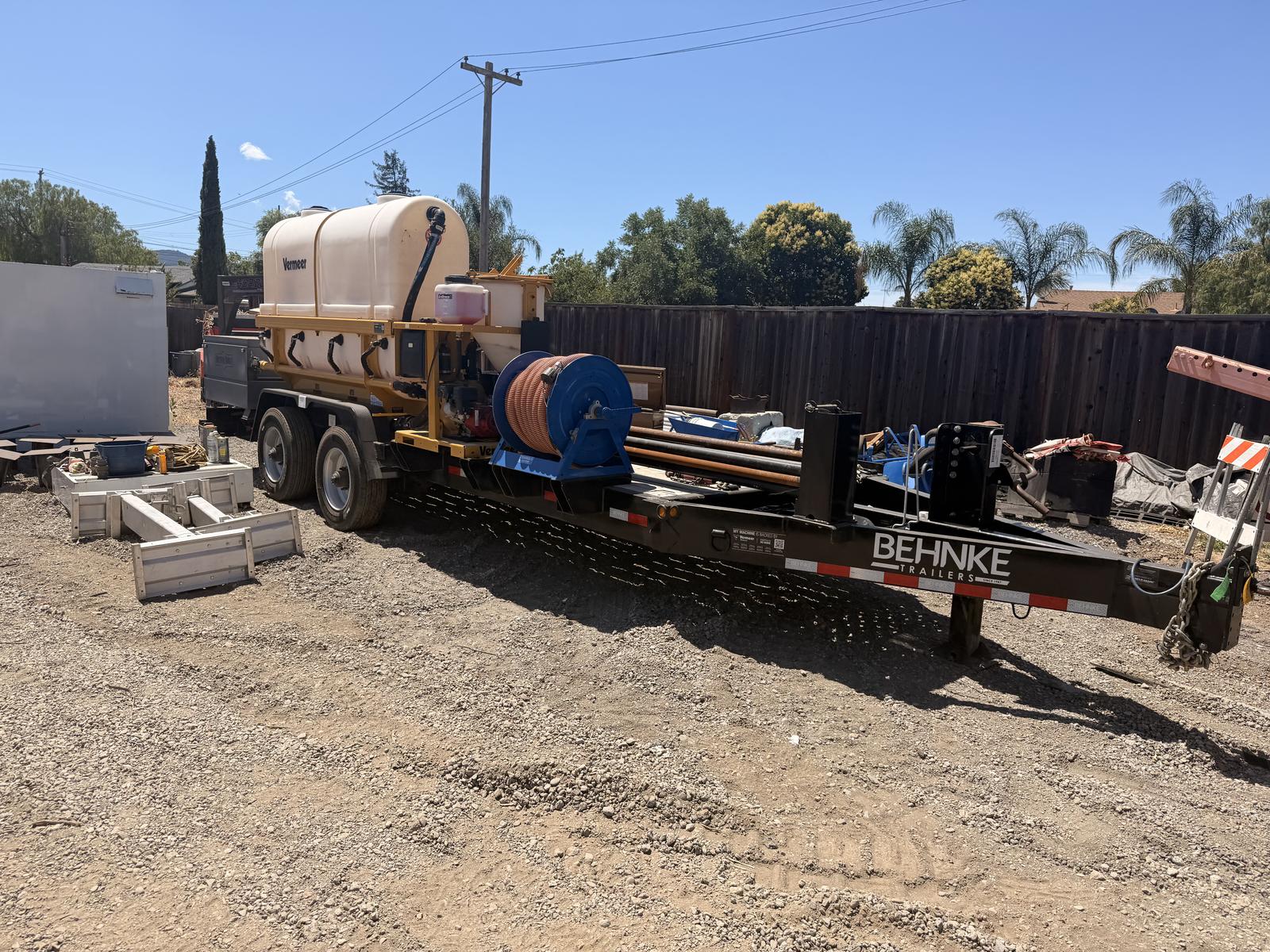

Trailer
2023 Vermeer 12T · SN# 4L5SC2926PF063024
Hose Reel
100 ft of 1.5" Hose
Job Box
Included

D20x22 S3 — Technical Specs

Year
2023
Hours
840
Serial Number
1VRA170VCP1003404
Engine
74 HP Deutz TD2.9 Tier 4 Turbocharged LC Diesel
Max Thrust / Pullback
19,550 lbs
Max Rotary Torque
2,250 ft-lb
Max Spindle Speed
257 RPM
Carriage Speed (High)
167 ft/min
Carriage Speed (Low)
114 ft/min
Water Pump
25 GPM @ 1,000 psi Max
Fuel Capacity
25 Gal @ 4.5 gph
Hydraulic Fluid Capacity
30 Gallons
Min Transport Width
47"
Track System
Rubber Tracks
Drill Rod
400 ft (+ 100 ft extra) 2.06" Firestick
Controls
Dual Joystick Common Platform

Overview

Complete turn-key horizontal directional drilling package ready to go to work. The 2023 Vermeer D20x22 S3 has only 840 hours and is in excellent condition. Powered by a 74 HP Deutz Tier 4 turbocharged liquid-cooled diesel engine, this machine delivers 19,550 lbs of thrust/pullback and 2,250 ft-lb of rotary torque — ideal for residential and light commercial utility installation.

Package includes the drill, 2023 Vermeer MX125 mud mixer with 500-gallon water tank, 500 total feet of 2.06" Firestick forged one-piece drill rods, and a 2023 Vermeer 12T drill trailer fully equipped with hose reel, job box, rod holders, and more. Everything you need — buy it and start drilling.

All 122 photos shown are of the actual equipment. Serious inquiries only.

Photos (122)

Ready to Make a Deal?

$235,000
Complete package · No splits · Serious buyers only
📞 —
✉️ —
